450LLE10MEFC12.5x20
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability
105°C THT Ultra-Long-Life E-Cap LLE-series with compact dimensions
Product Code:
237611
Weight: 3.8 g
Manufacturer: RUBYCON
Weight: 3.8 g
Manufacturer: RUBYCON
Detailed information

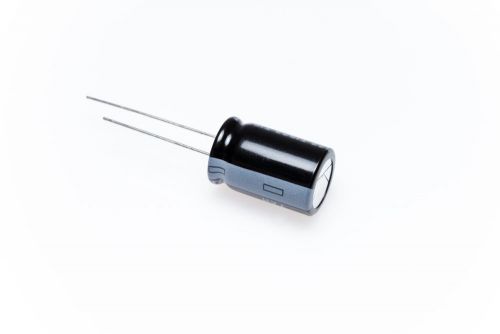

105°C THT DC-Link Aluminum Electrolytic Capacitor 450LLE10MEFC12.5x20 with extremely long life time and small dimensions
Your technical contact person
For general questions
Manufacturer / Brand
Manufacturer: RUBYCON
Technical Product Information
| Rated Voltage | 450V |
|---|---|
| Capacitance | 10µF |
| Capacitance Tolerance | +/-20 % |
| Rated Ripple Current @100kHz | 450mA rms |
| Rated Ripple Current @120Hz | 135mA rms |
| Maximum Category Temperature | 105°C |
| Minimale Category Temperature | -25°C |
| Guaranteed Lifetime | 20000h |
| Pin Type | THT |
| Pitch | 5mm |
| Diameter | 12,5mm |
| Height | 20mm |
| Series | LLE |
| Voltage Type | DC |
| Rated Voltage | 450Vdc |
