450VXH180MEFCSN22x40

Free Sample

Availability
Deliverable in short time
More information about samples availability can be found here: Availability
Miniaturized 105°C Snap-in E-Cap VXH-series with 5.000h
Product Code: 200975
Weight: 24 g
Manufacturer: RUBYCON

Detailed information

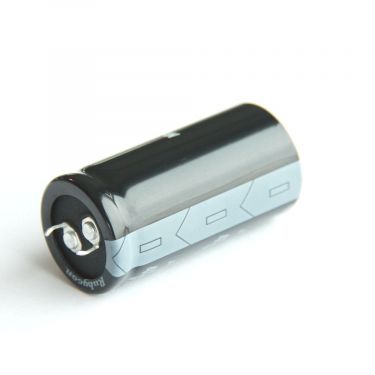

Miniaturized 105°C Snap-in Aluminum Electrolytic Capacitor 450VXH180MEFCSN22x40 with 5.000h guaranteed life time

Your technical contact person

For general questions

CODICO GmbH +43 1 86305-0 E-Mail
More Information
Rated Voltage 450V
Capacitance 180µF
Capacitance Tolerance +/-20 %
Rated Ripple Current @100kHz 0mA rms
Rated Ripple Current @120Hz 1270mA rms
Maximum Category Temperature 105°C
Minimale Category Temperature -25°C
Guaranteed Lifetime 5000h
Pin Type SNAP-IN
Pitch 10mm
Diameter 22mm
Height 40mm
Series VXH
