450VXH180MEFCSN30x25
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability
Miniaturized 105°C Snap-in E-Cap VXH-series with 5.000h
Product Code:
208879
Weight: 26 g
Manufacturer: RUBYCON
Weight: 26 g
Manufacturer: RUBYCON
Detailed information

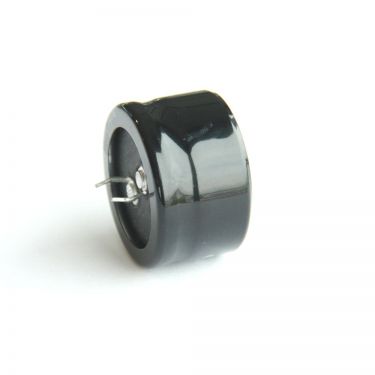

Miniaturized 105°C Snap-in Aluminum Electrolytic Capacitor 450VXH180MEFCSN30x25 with 5.000h guaranteed life time
Your technical contact person
For general questions
Manufacturer / Brand
Manufacturer: RUBYCON
Technical Product Information
Rated Voltage | 450V |
---|---|
Capacitance | 180µF |
Capacitance Tolerance | +/-20 % |
Rated Ripple Current @100kHz | 0mA rms |
Rated Ripple Current @120Hz | 1170mA rms |
Maximum Category Temperature | 105°C |
Minimale Category Temperature | -25°C |
Guaranteed Lifetime | 5000h |
Pin Type | SNAP-IN |
Pitch | 10mm |
Diameter | 30mm |
Height | 25mm |
Series | VXH |
Voltage Type | DC |
Rated Voltage | 450Vdc |
