500MXG470MEFCSN35x60
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability
105°C Snap-in E-Cap MXG-series
Product Code:
251413
Weight: 90 g
Manufacturer: RUBYCON
Weight: 90 g
Manufacturer: RUBYCON
Detailed information

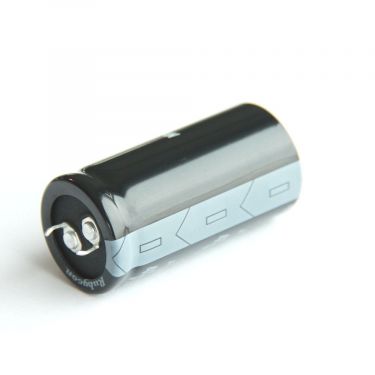

105°C Snap-in Aluminum Electrolytic Capacitor 500MXG470MEFCSN35x60 with 3.000h guaranteed life time
Your technical contact person
For general questions
Manufacturer / Brand
Manufacturer: RUBYCON
Technical Product Information
| Rated Voltage | 500V |
|---|---|
| Capacitance | 470µF |
| Capacitance Tolerance | +/-20 % |
| Rated Ripple Current @100kHz | 0mA rms |
| Rated Ripple Current @120Hz | 2280mA rms |
| Maximum Category Temperature | 105°C |
| Minimale Category Temperature | -25°C |
| Guaranteed Lifetime | 3000h |
| Pin Type | SNAP-IN |
| Pitch | 10mm |
| Diameter | 35mm |
| Height | 60mm |
| Series | MXG |
| Voltage Type | DC |
| Rated Voltage | 500Vdc |
