50KXF2200MEFCSN30x20

Free Sample

Product Availability
Deliverable in short time
More information about product availability can be found here: Product Availability

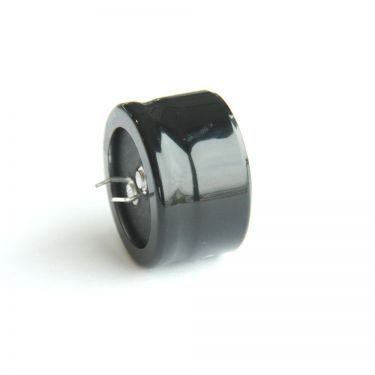

105°C Snap-in E-Cap KXF-series with low profile case size
Product Code: 229055
Weight: 20 g
Manufacturer: RUBYCON

Detailed information

105°C Snap-in Aluminum Electrolytic Capacitor 50KXF2200MEFCSN30x20 with 3.000h guaranteed life time and 20mm height

Your technical contact person

For general questions

CODICO GmbH +43 1 86305-0 E-Mail
More Information
Rated Voltage 50V
Capacitance 2200µF
Capacitance Tolerance +/-20 %
Rated Ripple Current @100kHz 0mA rms
Rated Ripple Current @120Hz 1600mA rms
Maximum Category Temperature 105°C
Minimale Category Temperature -40°C
Guaranteed Lifetime 3000h
Pin Type SNAP-IN
Pitch 10mm
Diameter 30mm
Height 20mm
Series KXF
