50MXG6800MEFCSN35x25

Free Sample

Availability
Deliverable in short time
More information about samples availability can be found here: Availability
105°C Snap-in E-Cap MXG-series
Product Code: 210147
Weight: 34 g
Manufacturer: RUBYCON

Detailed information

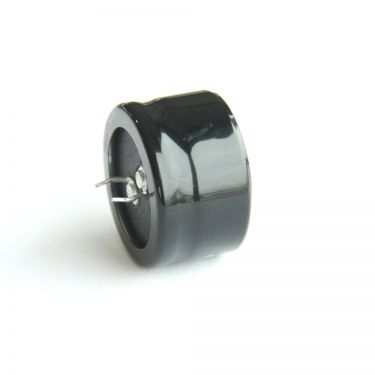

105°C Snap-in Aluminum Electrolytic Capacitor 50MXG6800MEFCSN35x25 with 2.000h guaranteed life time

Your technical contact person

For general questions

CODICO GmbH +43 1 86305-0 E-Mail
More Information
Rated Voltage 50V
Capacitance 6800µF
Capacitance Tolerance +/-20 %
Rated Ripple Current @100kHz 0mA rms
Rated Ripple Current @120Hz 3300mA rms
Maximum Category Temperature 105°C
Minimale Category Temperature -40°C
Guaranteed Lifetime 2000h
Pin Type SNAP-IN
Pitch 10mm
Diameter 35mm
Height 25mm
Series MXG
Voltage Type DC
Rated Voltage 50Vdc
