6.3AX1000MEFC10x9
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability
105°C THT E-Cap AX-series for high ripple currents
Product Code:
243536
Weight: 1.3 g
Manufacturer: RUBYCON
Weight: 1.3 g
Manufacturer: RUBYCON
Detailed information

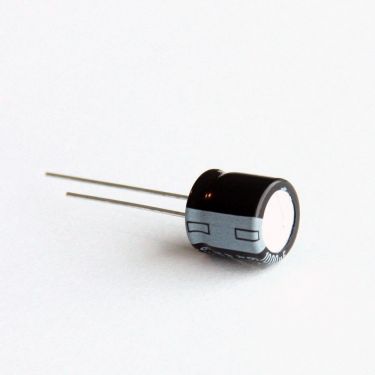

Miniaturized 105°C THT Aluminum Electrolytic Capacitor 6.3AX1000MEFC10x9 with high ripple current capability in small dimensions.
Your technical contact person
For general questions
Manufacturer / Brand
Manufacturer: RUBYCON
Technical Product Information
| Rated Voltage | 6,3V |
|---|---|
| Capacitance | 1000µF |
| Capacitance Tolerance | +/-20 % |
| Rated Ripple Current @100kHz | 1540mA rms |
| Rated Ripple Current @120Hz | 0mA rms |
| Impedance/ESR | 0,036Ω |
| Maximum Category Temperature | 105°C |
| Minimale Category Temperature | -40°C |
| Guaranteed Lifetime | 2000h |
| Pin Type | THT |
| Pitch | 5mm |
| Diameter | 10mm |
| Height | 9mm |
| Series | AX |
| Voltage Type | DC |
| Rated Voltage | 6,3Vdc |
