6.3AX220MEFC5x11

Free Sample

Availability
Deliverable in short time
More information about samples availability can be found here: Availability
105°C THT E-Cap AX-series for high ripple currents
Product Code: 258662
Weight: 0.48 g
Manufacturer: RUBYCON

Detailed information

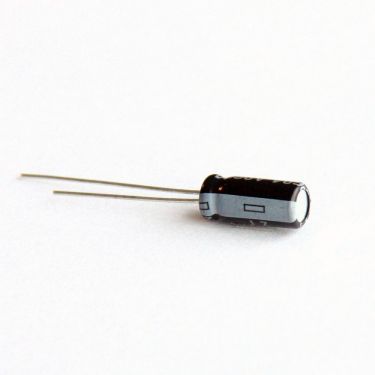

Miniaturized 105°C THT Aluminum Electrolytic Capacitor 6.3AX220MEFC5x11 with high ripple current capability in small dimensions

Your technical contact person

For general questions

CODICO GmbH +43 1 86305-0 E-Mail
More Information
Rated Voltage 6,3V
Capacitance 220µF
Capacitance Tolerance +/-20 %
Rated Ripple Current @100kHz 800mA rms
Rated Ripple Current @120Hz 0mA rms
Impedance/ESR 0,14Ω
Maximum Category Temperature 105°C
Minimale Category Temperature -40°C
Guaranteed Lifetime 2000h
Pin Type THT
Pitch 2mm
Diameter 5mm
Height 11mm
Series AX
Voltage Type DC
Rated Voltage 6,3Vdc
