105°C THT Long-Life E-Cap ML-series with low profile case size
Product Code: 232181
Weight: 1.3 g
Manufacturer: RUBYCON

Detailed information

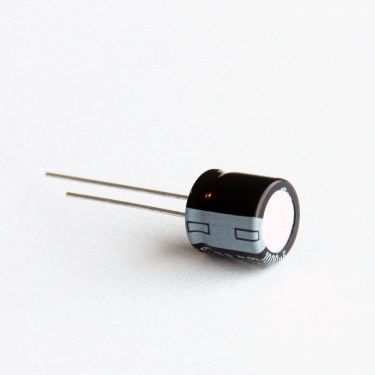

105°C THT Aluminum Electrolytic Capacitor 6.3ML1000MEFC10x9 with long life time in small dimensions and low height

Your technical contact person

For general questions

CODICO GmbH +43 1 86305-0 E-Mail
More Information
Rated Voltage 6,3V
Capacitance 1000µF
Capacitance Tolerance +/-20 %
Rated Ripple Current @100kHz 0mA rms
Rated Ripple Current @120Hz 480mA rms
Maximum Category Temperature 105°C
Minimale Category Temperature -40°C
Guaranteed Lifetime 5000h
Pin Type THT
Pitch 5mm
Diameter 10mm
Height 9mm
Series ML
