Ultra miniaturized 105°C THT Low-ESR E-Cap ZLQ-series
Product Code: 255349
Weight: 3.1 g
Manufacturer: RUBYCON

Detailed information

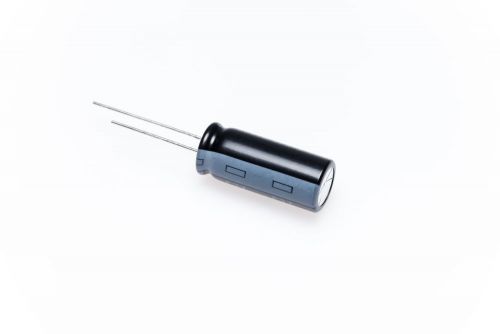

Ultra Miniaturized 105°C THT Aluminum Electrolytic Capacitor 6.3ZLQ4700MEFC10x25 with low ESR and high ripple current capability

Your technical contact person

For general questions

CODICO GmbH +43 1 86305-0 E-Mail
More Information
Rated Voltage 6,3V
Capacitance 4700µF
Capacitance Tolerance +/-20 %
Rated Ripple Current @100kHz 2500mA rms
Rated Ripple Current @120Hz 0mA rms
Impedance/ESR 0,015Ω
Maximum Category Temperature 105°C
Minimale Category Temperature -40°C
Guaranteed Lifetime 5000h
Pin Type THT
Pitch 5mm
Diameter 10mm
Height 25mm
Series ZLQ
Voltage Type DC
Rated Voltage 6,3Vdc
