63PEV10M6.3x6.1

Free Sample

Availability
Deliverable in short time
More information about samples availability can be found here: Availability

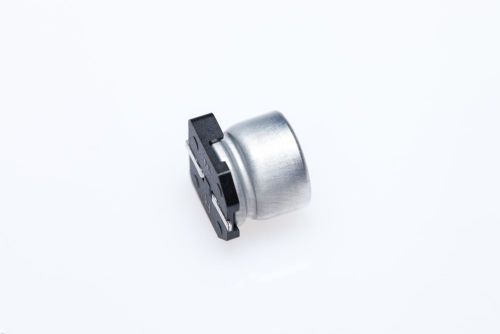

105°C SMD Hybrid E-Cap PEV-series
Product Code: 258383
Weight: 0.33 g
Manufacturer: RUBYCON

Detailed information

105°C SMD Aluminum-Polymer-Hybrid Electrolytic Capacitor 63PEV10M6.3x6.1 with 10.000h guaranteed life time, low ESR and high ripple current capability

Your technical contact person

For general questions

CODICO GmbH +43 1 86305-0 E-Mail
More Information
Rated Voltage 63V
Capacitance 10µF
Capacitance Tolerance +/-20 %
Rated Ripple Current @100kHz 1000mA rms
Rated Ripple Current @120Hz 0mA rms
Impedance/ESR 0,12Ω
Maximum Category Temperature 105°C
Minimale Category Temperature -25°C
Guaranteed Lifetime 10000h
Pin Type SMD
Diameter 6,3mm
Height 6,1mm
Series PEV
Voltage Type DC
Rated Voltage 63Vdc
