80TXW270MEFC10x40

Free Sample

Availability
Deliverable in short time
More information about samples availability can be found here: Availability
"105° THT Long-Life E-Cap TXW-series for high ripple currents ""Pencil Type"""
Product Code: 236086
Weight: 5 g
Manufacturer: RUBYCON

Detailed information

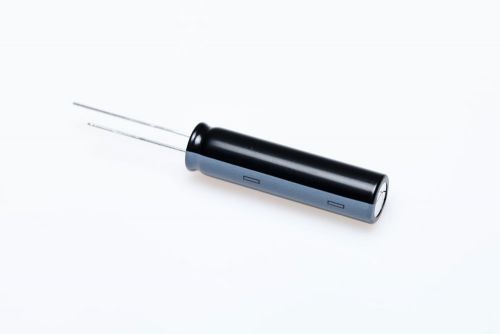

"105°C THT Aluminum Electrolytic Capacitor 80TXW270MEFC10x40 with high ripple current capability and long life time ""Pencil Type"""

Your technical contact person

For general questions

CODICO GmbH +43 1 86305-0 E-Mail
More Information
Rated Voltage 80V
Capacitance 270pF
Capacitance Tolerance +/-20 %
Rated Ripple Current @100kHz 2600mA rms
Rated Ripple Current @120Hz 1300mA rms
Maximum Category Temperature 105°C
Minimale Category Temperature -40°C
Guaranteed Lifetime 10000h
Pin Type THT
Pitch 5mm
Diameter 10mm
Height 40mm
Series TXW
Voltage Type DC
Rated Voltage 80Vdc
