80ZLH1500MEFC18x40

Free Sample

Availability
Deliverable in short time
More information about samples availability can be found here: Availability
Miniaturized 105°C THT Low-ESR Long-Life E-Cap ZLH-series
Product Code: 238603
Weight: 16 g
Manufacturer: RUBYCON

Detailed information

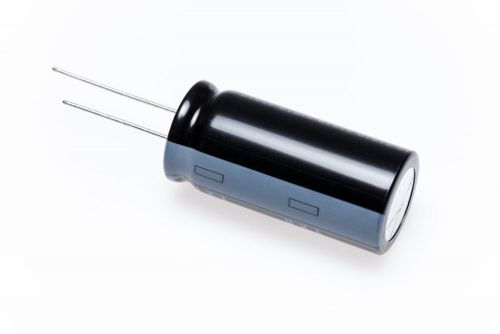

Miniaturized 105°C THT Aluminum Electrolytic Capacitor 80ZLH1500MEFC18x40 with low ESR, high ripple current capability and long life time

Your technical contact person

For general questions

CODICO GmbH +43 1 86305-0 E-Mail
More Information
Rated Voltage 80V
Capacitance 1500µF
Capacitance Tolerance +/-20 %
Rated Ripple Current @100kHz 3510mA rms
Rated Ripple Current @120Hz 0mA rms
Impedance/ESR 0,026Ω
Maximum Category Temperature 105°C
Minimale Category Temperature -40°C
Guaranteed Lifetime 10000h
Pin Type THT
Pitch 7,5mm
Diameter 18mm
Height 40mm
Series ZLH
Voltage Type DC
Rated Voltage 80Vdc
