80ZLH560MEFC16x25
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability
Miniaturized 105°C THT Low-ESR Long-Life E-Cap ZLH-series
Product Code:
224485
Weight: 7.5 g
Manufacturer: RUBYCON
Weight: 7.5 g
Manufacturer: RUBYCON
Detailed information

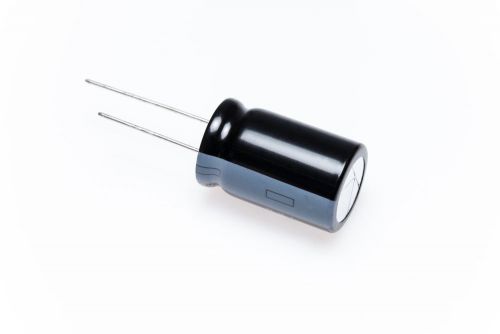

Miniaturized 105°C THT Aluminum Electrolytic Capacitor 80ZLH560MEFC16x25 with low ESR, high ripple current capability and long life time
Your technical contact person
For general questions
Manufacturer / Brand
Manufacturer: RUBYCON
Technical Product Information
Rated Voltage | 80V |
---|---|
Capacitance | 560µF |
Capacitance Tolerance | +/-20 % |
Rated Ripple Current @100kHz | 2210mA rms |
Rated Ripple Current @120Hz | 0mA rms |
Impedance/ESR | 0,044Ω |
Maximum Category Temperature | 105°C |
Minimale Category Temperature | -40°C |
Guaranteed Lifetime | 10000h |
Pin Type | THT |
Pitch | 7,5mm |
Diameter | 16mm |
Height | 25mm |
Series | ZLH |
Voltage Type | DC |
Rated Voltage | 80Vdc |
