Miniaturized 105°C THT Low-ESR Long-Life E-Cap ZLJ-series for high ripple currents
Product Code:
243430
Weight: 6.6 g
Manufacturer: RUBYCON
Weight: 6.6 g
Manufacturer: RUBYCON
Detailed information

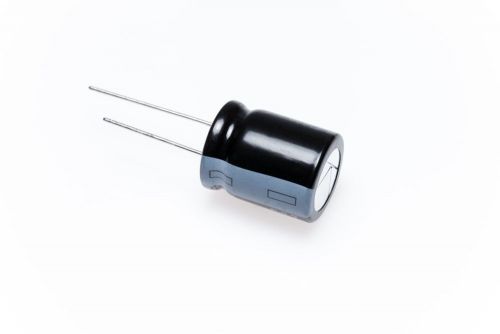

Miniaturized 105°C THT Aluminum Electrolytic Capacitor 80ZLJ330M16x20 with extra high ripple current capability, low ESR and long life time
Your technical contact person
For general questions
Manufacturer / Brand
Manufacturer: RUBYCON
Technical Product Information
Rated Voltage | 80V |
---|---|
Capacitance | 330µF |
Capacitance Tolerance | +/-20 % |
Rated Ripple Current @100kHz | 1950mA rms |
Rated Ripple Current @120Hz | 0mA rms |
Impedance/ESR | 0,048Ω |
Maximum Category Temperature | 105°C |
Minimale Category Temperature | -40°C |
Guaranteed Lifetime | 10000h |
Pin Type | THT |
Pitch | 7,5mm |
Diameter | 16mm |
Height | 20mm |
Series | ZLJ |
Voltage Type | DC |
Rated Voltage | 80Vdc |
