AM 25MHz for Qualcomm PLC QCA7005/7006
Free Sample
Availability
Immediately deliverable
More information about samples availability can be found here: Availability
Xtal 3225 Size, 25MHz: only solution on the market that meets QCA7005/7006 requirement: total tolerance ±25ppm in -40°C to +95°C incl.10 yrs aging
Product Code:
299566
Weight: 20 g
Manufacturer: TXC
Weight: 20 g
Manufacturer: TXC
Detailed information

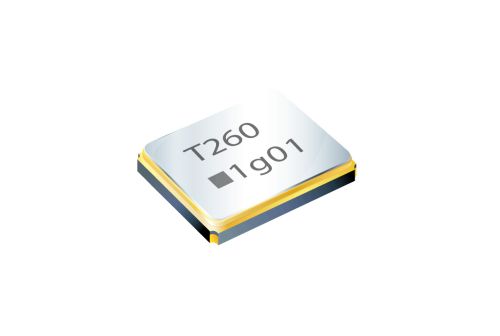

Xtal AM Series 25MHz
Overall Tolerance: ±25ppm (including Frequency Tolerance at +25°C, Temperature Characteristic and 10 years aging)
Overall Tolerance: ±27ppm (including 15 years aging)
Operating Temperature Range : -40°C to +95°C
Load Capacitance : 10pF
4 pads
AEC-Q200 compliant
Overall Tolerance: ±25ppm (including Frequency Tolerance at +25°C, Temperature Characteristic and 10 years aging)
Overall Tolerance: ±27ppm (including 15 years aging)
Operating Temperature Range : -40°C to +95°C
Load Capacitance : 10pF
4 pads
AEC-Q200 compliant
Your technical contact person
For general questions
Manufacturer / Brand
Manufacturer: TXC
Technical Product Information
| Case Size | 3225 |
|---|---|
| Capacitance | 10pF |
| Contactform | 4 pads |
| Dimension | 3.2x2.5mm |
| Packaging | Metal cover |
