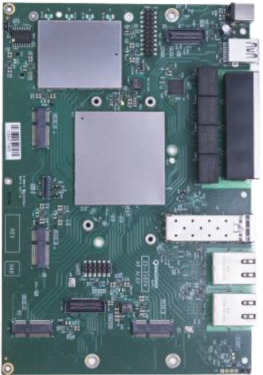

AP.AL02.3

Board Supplier: Compex
Chip Supplier: Qualcomm
Chip Part Number: IPQ-9574-0
CPU: Quad-Core ARM-A73 @2.2GHz
Flash: 256MB NAND flash, 32MB NOR flash, 8GB eMMC
RAM: 2 GB DDR4
OS: OpenWRT
Ethernet: 4 x 1Gbps, 2 x 10Gbps
USB: USB3.0
PCIe: PCIe 3.0, 2x M.2 E Key
Serial Interfaces: Serial Port 12 Pin Connector, SFP+ Port
GPIOs: up to 64
JTAG: JTAG 20 Pin Connector
Miscellaneous: no
Standards: WiFi 7
MIMO: 4x4 MU @2.4GHz
Frequency: 2.4GHz
DBS: no
Bandwidth: HT20/HT40
Antenna Data Rate 2.4 GHz: 1147 Mbps
Antenna Data Rate 5 GHz: -
Antenna Data Rate 6 GHz: -
Antenna Options: 4 x U.FL
Clients: 128
Output Power: 24 dBm per chain
Power Supply: 1x DC Jack Connector: 12V
Dimension (mm): 203 x 139 x 20
Weight (g): 660
Temperature Range: -20°C to +70°C
Reference Design: Qualcomm AP.AL02.3
