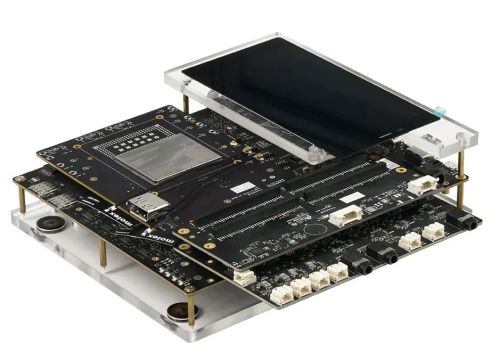

C5430 Development Kit

€1,310.00
Availability
Immediately deliverable
More information about samples availability can be found here: Availability
Development kit for the C5430 SOM, based on Qualcomm's 6nm QCS-5430 SoC a long life, highly integrated and powerful camera and AI processor for IIOT
Product Code: 316648
Weight: 1000 g
Manufacturer: THUNDERCOMM

Detailed information

Qualcomm QCS5430 Kryo CPU 670 FP11
Kryo Gold: Two high-performance cores at 2.1 GHz
Kryo Silver: Four low-power cores at 1.8 GHz FP2
Qualcomm Adreno GPU 6xx, Adreno 633 VPU, Adreno DPU 1075 Qualcomm Compute Hexagon DSP with dual HVX, Hexagon Co-processor (Hexagon CP) 2.0 and Hexagon Tensor Accelerator Qualcomm Spectra 570L image processing
SOM Memory configuration 6GB+128GB or 8GB+128GB
Connectivity 802.11 ax over PCIe with DBS, 2x2 MIMO (Wi-Fi 6E), Bluetooth 5.2
Video Encode 4K at 30FPS for H.264/H.265
Video Decode 4K at 60FPS for H.264/H.265/VP9
1x MIPI-DSI 4-lane;
4 x 4-lane MIPI CSI D-PHY
1 x USB 3.1 with DP, 1 x USB2.0, PCIe (FP2: 1x PCIe Gen3 2-lane),
2 x SoundWire, 2 x SDC(4bit), 3 x DMIC Interfaces, GPIOs, QUPs (UART/I2C/SPI)
SOM Form Factor LGA, dimensions 42.5mm x 35.5mm x 2.7mm
OS Android 13 (and A14,A15,A16 in the future)
