CVE2622HA-100M-R
Free Sample
Availability
Immediately deliverable
More information about samples availability can be found here: Availability

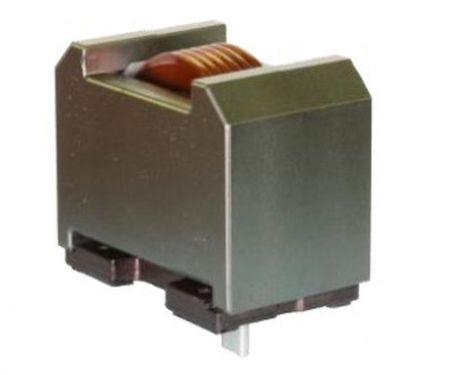

Power Choke Coil Sagami CVE2622HA-100M-R
Product Code:
267860
Weight: 36 g
Manufacturer: SAGAMI
Weight: 36 g
Manufacturer: SAGAMI
Detailed information
Power ChoPower Choke Coil
Inductance: 10µH
Saturation Current: 28A (ΔL -30%)
Rated Current: 33A
DC Resistance: 1.8mΩ
Dimensions: 26.9x16.5mm, Height: 22.3mm
Magnetically shielded
Operating Temperature: -40°C to +125
AEC-Q200 conform
THT, 4 Pins for better Vibration Resistance
Inductance: 10µH
Saturation Current: 28A (ΔL -30%)
Rated Current: 33A
DC Resistance: 1.8mΩ
Dimensions: 26.9x16.5mm, Height: 22.3mm
Magnetically shielded
Operating Temperature: -40°C to +125
AEC-Q200 conform
THT, 4 Pins for better Vibration Resistance
Your technical contact person
For general questions
Manufacturer / Brand
Manufacturer: SAGAMI
Technical Product Information
| Series | CVE2622HA |
|---|---|
| Inductance | 10μH |
| Tolerance | +/-20% |
| Rated Current | 33A |
| Saturation Current | 28(ΔL -30%) A |
| DC Resistance | 1,8mΩ |
| Dimension | 26.9x16.5mm |
| Height | 22.3mm |
| Pin Type | THT |
| Minimale Category Temperature | -40°C |
| Maximum Category Temperature | 125°C |
