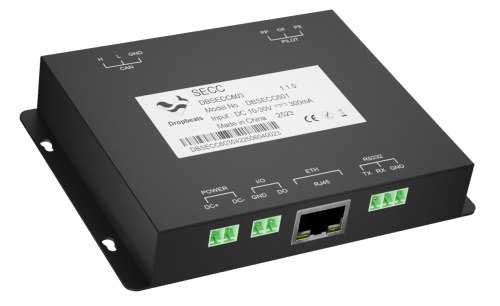

DB-SECC-603 DC EVSE Charging Com. Controller max.60kW
€159.00
Availability
Deliverable in short time
More information about samples availability can be found here: Availability
DB-SECC-603 is a SECC for DC-EVSE with IEC 61851-1/23/24, ISO 15118-2 and -20 as well as DIN 70121 support. CAN 2.0B Interface towards Host Controller
Product Code:
331618
Weight: 200 g
Manufacturer: DROPBEATS
Weight: 200 g
Manufacturer: DROPBEATS
Detailed information
The DB-SECC-603 is a Supply Equipment Communication
Controller (SECC) and is designed for DC charging stations.
The maximum power which is supported is 60kW.
It supports CCS1, CCS2 and NACS according to DIN 70121, ISO 15118-2 and ISO 15118-20 standards. It supports authentication through External Identification Means (EIM), Plug and Charge (PnC) and Autocharge. The DB-SECC-603 uses QCA7005 for HPGP Power Line Communication. The control functions are implemented in Qualcomm's latest 32 bit, 320 MHz MCU with 4M Bytes RAM and 4M Bytes Flash
Further technical details are provided below. Access to additional confidential product information is subject to a Codico non-disclosure agreement (NDA).
Controller (SECC) and is designed for DC charging stations.
The maximum power which is supported is 60kW.
It supports CCS1, CCS2 and NACS according to DIN 70121, ISO 15118-2 and ISO 15118-20 standards. It supports authentication through External Identification Means (EIM), Plug and Charge (PnC) and Autocharge. The DB-SECC-603 uses QCA7005 for HPGP Power Line Communication. The control functions are implemented in Qualcomm's latest 32 bit, 320 MHz MCU with 4M Bytes RAM and 4M Bytes Flash
Further technical details are provided below. Access to additional confidential product information is subject to a Codico non-disclosure agreement (NDA).
