FG4108ESXX-01
Free Sample
Availability
Immediately deliverable
More information about samples availability can be found here: Availability

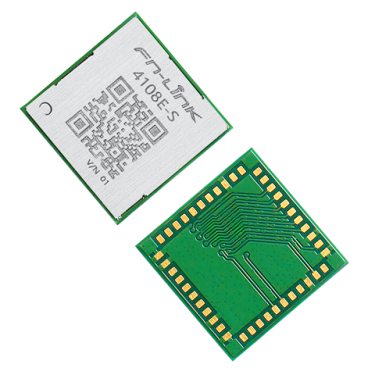

SDIO HaLow radio module
Product Code:
330465
Weight: 0 g
Manufacturer: FN-LINK
Weight: 0 g
Manufacturer: FN-LINK
Detailed information
Module Supplier: FN-Link
Chip Supplier: Morse Micro
Chip Part Number: MM6108
Interface Wi-Fi: SDIO 2.0 or SPI
Interface Bluetooth: NA
Linux & Android / Mainline Driver: yes / no
Windows: no
Bluetooth Standard: no
WiFi Standard: IEEE 802.11 ah
MIMO: 1x1
Frequency: 850 - 950 MHz
Bandwidth: 1/2/4/8 MHz
Antenna Data Rate: 32.5Mbps@8MHz, 15Mbps@4MHz
Antenna Configuration: one antenna
Antenna Type: 1 x pin
Monitor Mode: yes
Full AP / Soft AP: yes / yes
Power Supply: 3.3V
Dimension (mm): 13 x 13
Package: LGA
Temperature Range: -40°C to 85°C
Chip Supplier: Morse Micro
Chip Part Number: MM6108
Interface Wi-Fi: SDIO 2.0 or SPI
Interface Bluetooth: NA
Linux & Android / Mainline Driver: yes / no
Windows: no
Bluetooth Standard: no
WiFi Standard: IEEE 802.11 ah
MIMO: 1x1
Frequency: 850 - 950 MHz
Bandwidth: 1/2/4/8 MHz
Antenna Data Rate: 32.5Mbps@8MHz, 15Mbps@4MHz
Antenna Configuration: one antenna
Antenna Type: 1 x pin
Monitor Mode: yes
Full AP / Soft AP: yes / yes
Power Supply: 3.3V
Dimension (mm): 13 x 13
Package: LGA
Temperature Range: -40°C to 85°C
