FG6221ASRC-01
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability

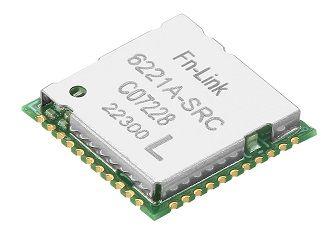

WiFi 5 SDIO radio-module
Inidustrial temperature grade
Inidustrial temperature grade
Product Code:
334596
Weight: 0 g
Manufacturer: FN-LINK
Weight: 0 g
Manufacturer: FN-LINK
Detailed information
Module Supplier: FN-Link
Chip Supplier: Realtek
Chip Part Number: RTL8821CS-VI-CG
Interface Wi-Fi: SDIO3.0
Interface Bluetooth: UART, PCM
Linux & Android / Mainline Driver: yes / no
Windows: Windows10
Bluetooth Standard: V4.2, BLE
WiFi Standard: WiFi 5
MIMO: MU 1x1
Frequency: 2.4 GHz & 5 GHz
Bandwidth: HT20/HT40/HT80
Antenna Data Rate: 433 Mbps
Antenna Configuration: [BT,2G,5G]
Antenna Type: 1 x pin
Monitor Mode: yes
Full AP / Soft AP: no / yes
Power Supply: 3.3V
Dimension (mm): 12 x 12
Package: LGA
Temperature Range: -40°C to 85°C
Chip Supplier: Realtek
Chip Part Number: RTL8821CS-VI-CG
Interface Wi-Fi: SDIO3.0
Interface Bluetooth: UART, PCM
Linux & Android / Mainline Driver: yes / no
Windows: Windows10
Bluetooth Standard: V4.2, BLE
WiFi Standard: WiFi 5
MIMO: MU 1x1
Frequency: 2.4 GHz & 5 GHz
Bandwidth: HT20/HT40/HT80
Antenna Data Rate: 433 Mbps
Antenna Configuration: [BT,2G,5G]
Antenna Type: 1 x pin
Monitor Mode: yes
Full AP / Soft AP: no / yes
Power Supply: 3.3V
Dimension (mm): 12 x 12
Package: LGA
Temperature Range: -40°C to 85°C
