High performance, ultra-low power, compact Bluetooth module
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability
A Bluetooth Low Energy and 2.4GHz proprietary RF multi-application module
Product Code:
336127
Weight: 18 g
Manufacturer: EHONG
Weight: 18 g
Manufacturer: EHONG
Detailed information

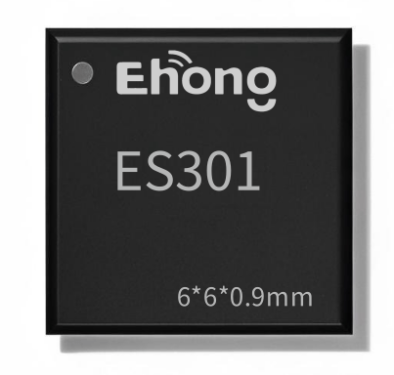

A fully certified multi-application module that merges the exceptional performance of a leading RF transceiver with a low-power ARM Cortex-M4 64MHz processor, power management unit, ADC, and intelligent I/O distribution controller. The ES301 module showcases outstanding ultra-low power performance, with broadcast power consumption as low as 9uA at a 1-second interval, and connection power consumption as low as 7uA at a 1-second interval.
ARM Cortex-M4 CPU (Maximum 64MHz)
EFUSE:256-bit
SRAM:80kB
Serial Flash:1MB
I-Cache RAM:8KB
Tx Power : -30dBm to +8dBm
Rx Sensitivity : 2Mbps:-96dbm / 1Mbps:-99dBm
Deep Sleep : 1.2uA(with 16K RAM retention,32KHz RC)
Dimension: 6 x 6 x 0.9mm
Weight: 0.18g
Antenna: Internal
Certification : BQB, FCC, CE, IC,SRRC, RoHs
Operating temp : -30 to 85 degrees
ARM Cortex-M4 CPU (Maximum 64MHz)
EFUSE:256-bit
SRAM:80kB
Serial Flash:1MB
I-Cache RAM:8KB
Tx Power : -30dBm to +8dBm
Rx Sensitivity : 2Mbps:-96dbm / 1Mbps:-99dBm
Deep Sleep : 1.2uA(with 16K RAM retention,32KHz RC)
Dimension: 6 x 6 x 0.9mm
Weight: 0.18g
Antenna: Internal
Certification : BQB, FCC, CE, IC,SRRC, RoHs
Operating temp : -30 to 85 degrees
