MPL-AL4020-R68
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability

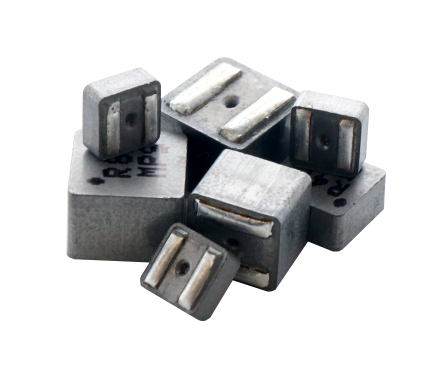

Power Inductor MPL-AL4020-R68
Product Code:
295971
Weight: 0.44 g
Manufacturer: MPS
Weight: 0.44 g
Manufacturer: MPS
Detailed information
Molded Inductor
Low-Resistance
Soft Saturation Characteristics
Magnetic Shielded
Available only in combination with MPS controller!
Low-Resistance
Soft Saturation Characteristics
Magnetic Shielded
Available only in combination with MPS controller!
Your technical contact person
For general questions
Manufacturer / Brand
Manufacturer: MPS
Technical Product Information
| Series | AL4020 |
|---|---|
| Inductance | 0.68μH |
| Tolerance | +/-20% |
| Rated Current | 8.7A |
| Saturation Current | 11(ΔL -30%) A |
| DC Resistance | 7.5mΩ |
| Dimension | 4.12x4.12mm |
| Height | 2.1mm |
| Pin Type | SMD |
| Minimale Category Temperature | -40°C |
| Maximum Category Temperature | 155°C |
