MPL-AL5030-2R2
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability

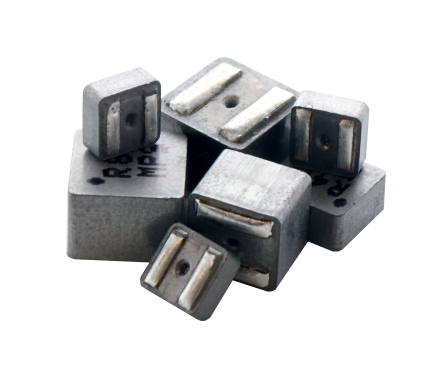

Power Inductor MPL-AL5030-2R2
Product Code:
295977
Weight: 0.45 g
Manufacturer: MPS
Weight: 0.45 g
Manufacturer: MPS
Detailed information
Molded Inductor
Low-Resistance
Soft Saturation Characteristics
Magnetic Shielded
Available only in combination with MPS controller!
Low-Resistance
Soft Saturation Characteristics
Magnetic Shielded
Available only in combination with MPS controller!
Your technical contact person
For general questions
Manufacturer / Brand
Manufacturer: MPS
Technical Product Information
| Series | AL5030 |
|---|---|
| Inductance | 2.2μH |
| Tolerance | +/-20% |
| Rated Current | 8.2A |
| Saturation Current | 11(ΔL -30%) A |
| DC Resistance | 12.3mΩ |
| Dimension | 5.52x5.32mm |
| Height | 2.92mm |
| Pin Type | SMD |
| Minimale Category Temperature | -40°C |
| Maximum Category Temperature | 155°C |
