MPL-AL6050-R82
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability

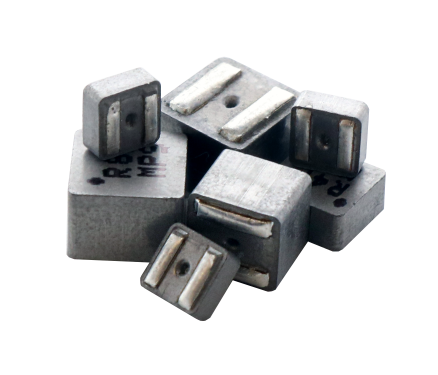

Power Inductor MPL-AL6050-R82
Product Code:
295994
Weight: 0.5 g
Manufacturer: MPS
Weight: 0.5 g
Manufacturer: MPS
Detailed information
Molded Inductor
Low-Resistance
Soft Saturation Characteristics
Magnetic Shielded
Available only in combination with MPS controller!
Low-Resistance
Soft Saturation Characteristics
Magnetic Shielded
Available only in combination with MPS controller!
Your technical contact person
For general questions
Manufacturer / Brand
Manufacturer: MPS
Technical Product Information
| Series | AL6050 |
|---|---|
| Inductance | 0.82μH |
| Tolerance | +/-20% |
| Rated Current | 16.9A |
| Saturation Current | 24(ΔL -30%) A |
| DC Resistance | 3.9mΩ |
| Dimension | 6.62x6.42mm |
| Height | 4.82mm |
| Pin Type | SMD |
| Minimale Category Temperature | -40°C |
| Maximum Category Temperature | 155°C |
