MPL-AT2010-4R7
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability

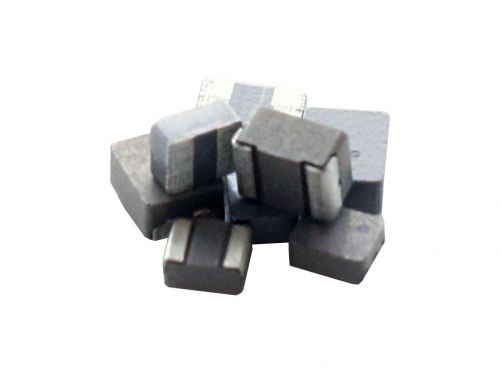

Power Inductor MPL-AT2010-4R7
Product Code:
296002
Weight: 0.22 g
Manufacturer: MPS
Weight: 0.22 g
Manufacturer: MPS
Detailed information
Molded Inductor
Low-Profile
Soft Saturation Characteristics
Magnetic Shielded
Available only in combination with MPS controller!
Low-Profile
Soft Saturation Characteristics
Magnetic Shielded
Available only in combination with MPS controller!
Your technical contact person
For general questions
Manufacturer / Brand
Manufacturer: MPS
Technical Product Information
| Series | AT2010 |
|---|---|
| Inductance | 4.7μH |
| Tolerance | +/-20% |
| Rated Current | 1,5A |
| Saturation Current | 1.9(ΔL -30%) A |
| DC Resistance | 215mΩ |
| Dimension | 2.1x1.61mm |
| Height | 1.0mm |
| Pin Type | SMD |
| Minimale Category Temperature | -40°C |
| Maximum Category Temperature | 125°C |
