MPL-SE6040-100
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability
Power Inductor MPL-SE6040-100
Product Code:
296078
Weight: 0.6 g
Manufacturer: MPS
Weight: 0.6 g
Manufacturer: MPS
Detailed information

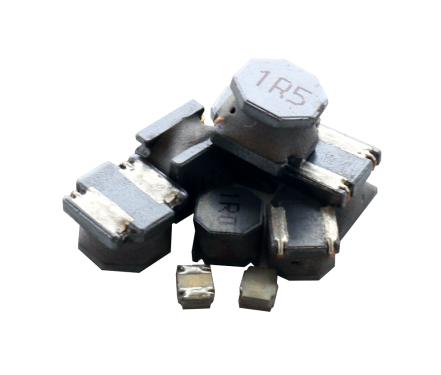

Semi-Shielded Inductors
SMD
Available only in combination with MPS controller!
SMD
Available only in combination with MPS controller!
Your technical contact person
For general questions
Manufacturer / Brand
Manufacturer: MPS
Technical Product Information
| Series | SE6040 |
|---|---|
| Inductance | 10μH |
| Tolerance | +/-20% |
| Rated Current | 3.8A |
| Saturation Current | 3.4(ΔL -30%) A |
| DC Resistance | 41mΩ |
| Dimension | 6.2x6.2mm |
| Height | 4mm |
| Pin Type | SMD |
| Minimale Category Temperature | -40°C |
| Maximum Category Temperature | 125°C |
