Evaluation Kit for the PMIC Module MPM54304. (Programmable Step-Down Module with integrated inductors).

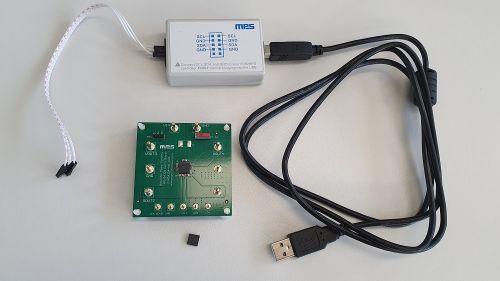

The Kit consists of the Evaluation Board EVM54304-MN-00A together with the PC Interface Kit EVKT-USBI2C-02, including cables, and the programming Software Virtual Bench Pro (Windows 7 or higher).
The module delivers 2x3A and 2x2A from an input source between 4V and 16V. The outputs can be paralled to deliver 1x6A and 1x4A.
All parameters can be configured via I²C Bus
The Kit consists of the Evaluation Board EVM54304-MN-00A together with the PC Interface Kit EVKT-USBI2C-02, including cables, and the programming Software Virtual Bench Pro (Windows 7 or higher).
The module delivers 2x3A and 2x2A from an input source between 4V and 16V. The outputs can be paralled to deliver 1x6A and 1x4A.
All parameters can be configured via I²C Bus
Your technical contact person
For general questions
Manufacturer / Brand
Manufacturer: MPS
Technical Product Information
| Input Voltage min | 4V |
|---|---|
| Input Voltage max | 16V |
| Output Current | 10000mA |
