PAA5102KD-A (Design Kit)
€180.00
Availability
Deliverable in short time
More information about samples availability can be found here: Availability
Evaluation Kit
Optical Tracking Miniature Sensor PAA5102
Support 3-wire SPI interface
Optical Tracking Miniature Sensor PAA5102
Support 3-wire SPI interface
Product Code:
308634
Weight: 948 g
Manufacturer: PIXART
Weight: 948 g
Manufacturer: PIXART
Detailed information
Include:

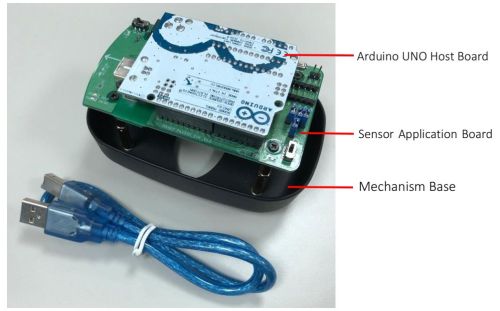

5 sensors + 5 lens + 5 LED +2 EVB + 1 adaptor board + 1 Arduino Uno Board
Wide DOF range of tracking (40mm ~ 60mm)
High tracking accuracy
Tracking Speed:
Up to 15 ips (LASER mode)
Up to 30 ips (LED mode)
Tracking on glossy surfaces (metal, tiles) via LASER and diffused surface (cloth, carpets) via LED
10-pin LGA package (4.6 x 4.4 x 1.0 mm)
Applications
Devices that requires tracking on surfaces
- with wide working range
- wide range of material surfaces
- speed detection and distance of moving surfaces
5 sensors + 5 lens + 5 LED +2 EVB + 1 adaptor board + 1 Arduino Uno Board
Wide DOF range of tracking (40mm ~ 60mm)
High tracking accuracy
Tracking Speed:
Up to 15 ips (LASER mode)
Up to 30 ips (LED mode)
Tracking on glossy surfaces (metal, tiles) via LASER and diffused surface (cloth, carpets) via LED
10-pin LGA package (4.6 x 4.4 x 1.0 mm)
Applications
Devices that requires tracking on surfaces
- with wide working range
- wide range of material surfaces
- speed detection and distance of moving surfaces
