100MXG2200MEFCSN25x40

Free Sample

Product Availability
Deliverable in short time
More information about product availability can be found here: Product Availability
105°C Snap-in E-Cap MXG-series
Product Code: 195173
Weight: 31 g
Manufacturer: RUBYCON

Detailed information

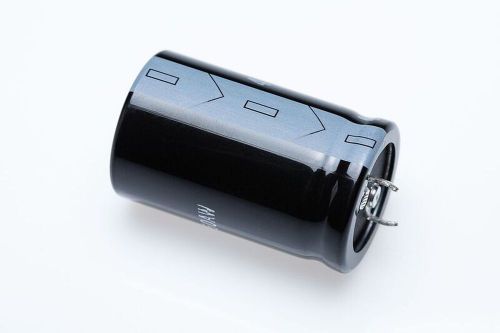

105°C Snap-in Aluminum Electrolytic Capacitor 100MXG2200MEFCSN25x40 with 2.000h guaranteed life time

Your technical contact person

For general questions

CODICO GmbH +43 1 86305-0 E-Mail
More Information
Series MXG
Pin Type SNAP-IN
Rated Voltage 100V
Capacitance 2200µF
Rated Ripple Current @120Hz 2550mA rms
Rated Ripple Current @100kHz 0mA rms
Guaranteed Lifetime 2000h
Maximum Category Temperature 105°C
Minimale Category Temperature -40°C
Height 40mm
Pitch 10mm
Capacitance Tolerance +/-20 %
