35TLV1000M16x16.5

Free Sample

Product Availability
Deliverable in short time
More information about product availability can be found here: Product Availability
105°C SMD Long-Life E-Cap TLV-series for high ripple currents
Product Code: 213610
Weight: 5 g
Manufacturer: RUBYCON

Detailed information

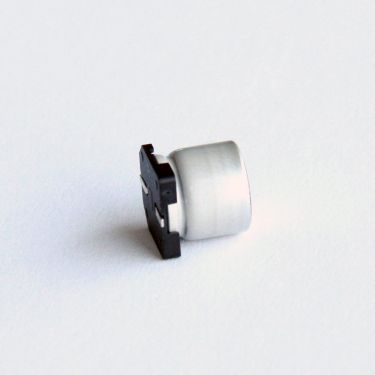

105°C SMD Aluminum Electrolytic Capacitor 35TLV1000M16x16.5 with high ripple current capability and long life time

Your technical contact person

For general questions

CODICO GmbH +43 1 86305-0 E-Mail
More Information
Series TLV
Pin Type SMD
Rated Voltage 35V
Capacitance 1000µF
Rated Ripple Current @120Hz 0mA rms
Rated Ripple Current @100kHz 1800mA rms
Impedance/ESR 0,045Ω
Guaranteed Lifetime 5000h
Maximum Category Temperature 105°C
Minimale Category Temperature -55°C
Height 16,5mm
Capacitance Tolerance +/-20 %
