105°C SMD Low-ESR E-Cap TZV-series
Product Code: 164693
Weight: 0.33 g
Manufacturer: RUBYCON

Detailed information

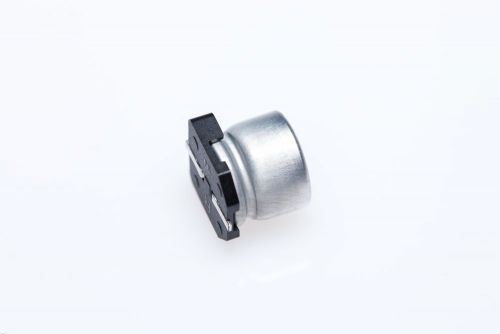

105°C SMD Aluminum Electrolytic Capacitor 35TZV22M6.3x6.1 with low ESR

Your technical contact person

For general questions

CODICO GmbH +43 1 86305-0 E-Mail
More Information
Series TZV
Pin Type SMD
Rated Voltage 35V
Capacitance 22µF
Rated Ripple Current @120Hz 0mA rms
Rated Ripple Current @100kHz 250mA rms
Impedance/ESR 0,36Ω
Guaranteed Lifetime 2000h
Maximum Category Temperature 105°C
Minimale Category Temperature -55°C
Height 6,1mm
Capacitance Tolerance +/-20 %
