400MXH270MEFCSN22x40

Free Sample

Product Availability
Deliverable in short time
More information about product availability can be found here: Product Availability
Miniaturized 105°C Snap-in E-Cap MXH-series
Product Code: 198607
Weight: 24 g
Manufacturer: RUBYCON

Detailed information

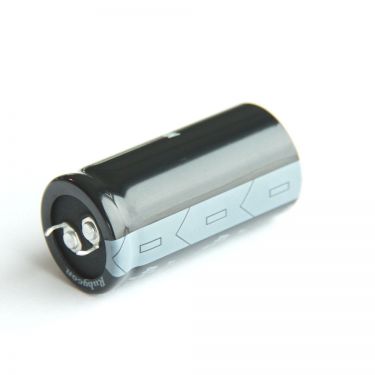

Miniaturized 105°C Snap-in Aluminum Electrolytic Capacitor 400MXH270MEFCSN22x40 with 2.000h guaranteed life time

Your technical contact person

For general questions

CODICO GmbH +43 1 86305-0 E-Mail
More Information
Series MXH
Pin Type SNAP-IN
Rated Voltage 400V
Capacitance 270µF
Rated Ripple Current @120Hz 1500mA rms
Rated Ripple Current @100kHz 0mA rms
Guaranteed Lifetime 2000h
Maximum Category Temperature 105°C
Minimale Category Temperature -25°C
Height 40mm
Pitch 10mm
Capacitance Tolerance +/-20 %
