WLE3000H56-I
€111.00
Availability
Deliverable in short time
More information about samples availability can be found here: Availability

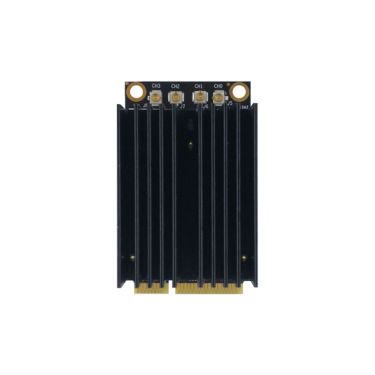

WiFi 6 PCIe radio module
Product Code:
331534
Weight: 0 g
Manufacturer: COMPEX
Weight: 0 g
Manufacturer: COMPEX
Detailed information
Module Supplier: Compex
Chip Supplier: Qualcomm
Chip Part Number: QCN-9074-1
Interface Wi-Fi: PCIe 3.0, mini-PCIe
Interface Bluetooth: NA
Linux & Android / Mainline Driver: yes / from 5.4 upward
Windows: NA
Bluetooth Standard: NA
WiFi Standard: WiFi 6E
MIMO: MU 4x4
Frequency: 5 GHz & 6 GHz
Bandwidth: HT20/HT40/HT80 /HT160
Antenna Data Rate: 4804 Mbps
Antenna Configuration: [5G,6G]+[5G,6G]+[5G,6G]+[5G,6G]
Antenna Type: 4 x U.FL connectors
Monitor Mode: yes
Full AP / Soft AP: yes / yes
Power Supply: 3.3V
Dimension (mm): 30 x 50.8 x 13.5
Package: mini PCIe card
Temperature Range: -40°C to +85°C
Chip Supplier: Qualcomm
Chip Part Number: QCN-9074-1
Interface Wi-Fi: PCIe 3.0, mini-PCIe
Interface Bluetooth: NA
Linux & Android / Mainline Driver: yes / from 5.4 upward
Windows: NA
Bluetooth Standard: NA
WiFi Standard: WiFi 6E
MIMO: MU 4x4
Frequency: 5 GHz & 6 GHz
Bandwidth: HT20/HT40/HT80 /HT160
Antenna Data Rate: 4804 Mbps
Antenna Configuration: [5G,6G]+[5G,6G]+[5G,6G]+[5G,6G]
Antenna Type: 4 x U.FL connectors
Monitor Mode: yes
Full AP / Soft AP: yes / yes
Power Supply: 3.3V
Dimension (mm): 30 x 50.8 x 13.5
Package: mini PCIe card
Temperature Range: -40°C to +85°C
