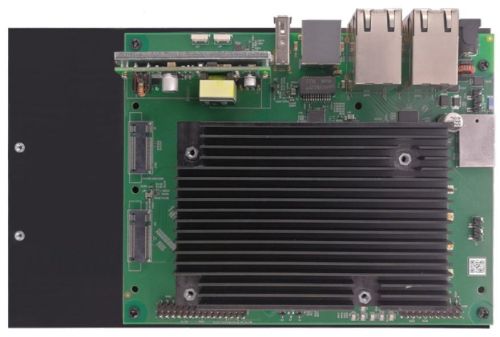

WPQ618

Board Supplier: Compex
Chip Supplier: Qualcomm
Chip Part Number: IPQ-6018-0
CPU: Quad ARM-A53 @ 1.8 GHz
Flash:256 MB NAND & 32 MB NOR
RAM: 1GB (2x 512MB) DDR3L
OS: Linux OpenWRT
Ethernet: 4 x 1Gbps & 1 x 2.5Gbps
USB:USB3.0, USB2.0
PCIe: PCIe 3.0
Serial Interfaces: SPI, UART
GPIOs: up to 79
JTAG: JTAG 20 Pin Connector
Miscellaneous:4x SIM Card Slot, 1x SD Card Slo
Standards: WiFi 6 + Bluetooth
MIMO: 2x2 MU
Frequency: 2.4 GHz & 5 GHz
DBS: yes
Bandwidth:HT20/HT40/HT80
Antenna Data Rate 2.4 GHz: 573 Mbps
Antenna Data Rate 5 GHz: 1201 Mbps
Antenna Options: 2 x U.FL or 2 x Pin
Clients: 128
Power Supply: 1x DC Jack Connector: DC 12V
Dimension (mm): 128 x 210 x33.9 (With Heatsink)
Weight (g): 560
Temperature Range: -20°C to +70°C
Reference Design: Compex Design (derived from AP.CP01)
