XC9268B75DER-G

Free Sample

Product Availability
Deliverable in short time
More information about product availability can be found here: Product Availability

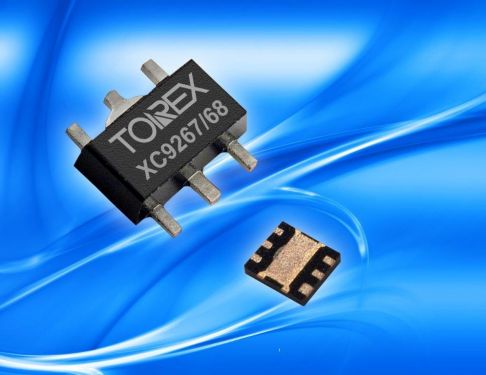

36V Operation 600mA Synchronous Step-Down DC/DC Converters
Product Code: 267397
Weight: 0 g
Manufacturer: TOREX

Detailed information

The XC9268 series are 36V operation synchronous step-down DC/DC converter ICs with a built-in P-channel MOS driver transistor and N-channel MOS switching transistor. The XC9268 series has operating voltage range of 3.0V~36.0V and high-efficiency power supply up to an output current of 600mA. A 0.75V reference voltage source is incorporated in the IC, and the output voltage can be set to a value from 1.0V to 25.0V using
external resistors (RFB1, RFB2).

Your technical contact person

Johannes Kornfehl is product marketing manager
Johannes Kornfehl +43 1 86305-149 E-MAIL

For general questions

CODICO GmbH +43 1 86305-0 E-Mail
More Information
Input Voltage min 3V
Input Voltage max 36V
Output Current 600mA
