25THV330M10x10.5
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability
125°C SMD Long-Life E-Cap THV-series
Product Code:
218042
Weight: 1.3 g
Manufacturer: RUBYCON
Weight: 1.3 g
Manufacturer: RUBYCON
Detailed information

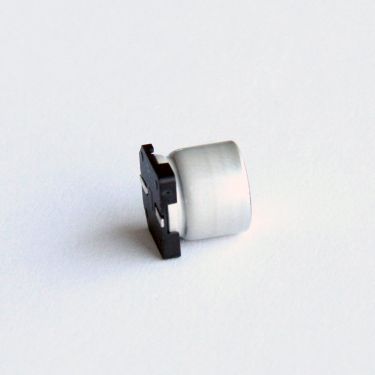

125°C SMD Aluminum Electrolytic Capacitor 25THV330M10x10.5 with long life time
Your technical contact person
For general questions
Manufacturer / Brand
Manufacturer: RUBYCON
Technical Product Information
| Rated Voltage | 25V |
|---|---|
| Capacitance | 330µF |
| Capacitance Tolerance | +/-20 % |
| Rated Ripple Current @100kHz | 500mA rms |
| Rated Ripple Current @120Hz | 0mA rms |
| Impedance/ESR | 0,2Ω |
| Maximum Category Temperature | 125°C |
| Minimale Category Temperature | -40°C |
| Guaranteed Lifetime | 3000h |
| Pin Type | SMD |
| Diameter | 10mm |
| Height | 10,5mm |
| Series | THV |
| Voltage Type | DC |
| Rated Voltage | 25Vdc |
