63ZLH470MEFC12.5x25

Free Sample

Availability
Deliverable in short time
More information about samples availability can be found here: Availability
Miniaturized 105°C THT Low-ESR Long-Life E-Cap ZLH-series
Product Code: 202916
Weight: 4.8 g
Manufacturer: RUBYCON

Detailed information

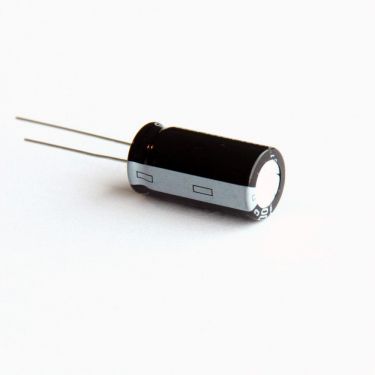

Miniaturized 105°C THT Aluminum Electrolytic Capacitor 63ZLH470MEFC12.5x25 with low ESR, high ripple current capability and long life time

Your technical contact person

For general questions

CODICO GmbH +43 1 86305-0 E-Mail
More Information
Rated Voltage 63V
Capacitance 470µF
Capacitance Tolerance +/-20 %
Rated Ripple Current @100kHz 1990mA rms
Rated Ripple Current @120Hz 0mA rms
Impedance/ESR 0,043Ω
Maximum Category Temperature 105°C
Minimale Category Temperature -40°C
Guaranteed Lifetime 10000h
Pin Type THT
Pitch 5mm
Diameter 12,5mm
Height 25mm
Series ZLH
Voltage Type DC
Rated Voltage 63Vdc
