16FVFP820M+P
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability

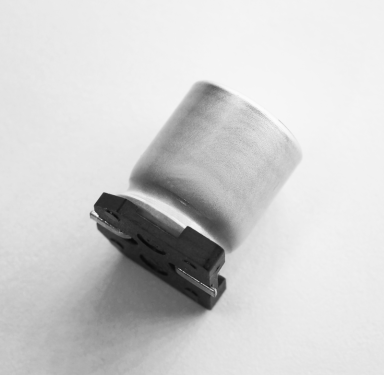

135°C SMD Hybrid E-Cap FVFP-series
Product Code:
318598
Weight: 2.2 g
Manufacturer: SUNCON
Weight: 2.2 g
Manufacturer: SUNCON
Detailed information
135°C SMD Aluminum-Polymer-Hybrid Electrolytic Capacitor 16FVFP820M+P with 4.000h guaranteed life time, very low ESR and particularly high ripple current capability.
Rated ripple current at 125°C: 5,000mA rms
Rated ripple current at 125°C: 5,000mA rms
Your technical contact person
For general questions
Manufacturer / Brand
Manufacturer: SUNCON
Technical Product Information
| Capacitance | 820µF |
|---|---|
| Capacitance Tolerance | +/-20 % |
| Rated Ripple Current @100kHz | 3300mA rms |
| Impedance/ESR | 0,013Ω |
| Maximum Category Temperature | 135°C |
| Minimale Category Temperature | -55°C |
| Guaranteed Lifetime | 4000h |
| Pin Type | SMD |
| Diameter | 10mm |
| Height | 13,8mm |
| Series | FVFP |
| Voltage Type | DC |
| Rated Voltage | 16Vdc |
