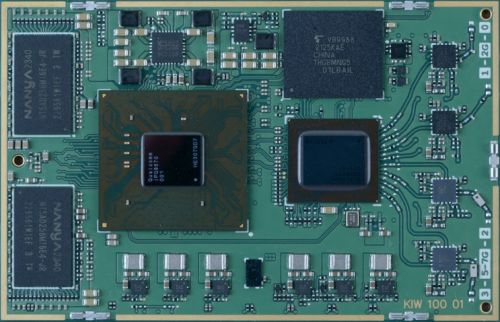

Kiwi

Module Supplier: 8Devices
Chip Supplier: Qualcomm
Chip Part Number: IPQ-9570-0
CPU: Quad Cortex-A73 @ 2.2 GHz (1 MB L2 Cache)
Flash: 4 GB eMMC
RAM: 1 GB LPDDDR4X (up to 2 GB)
OS: Linux OpenWRT
Ethernet: 2 x USXGMII, 1 x USXGMII-M
USB: 1 x USB3.0
PCIe: 1 x PCIe 3.0 (single line) + 2 x PCIe 3.0 (dual line)
Serial Interfaces: 6 x BLSP (SPI/UART/I2C), 4 x PWM
GPIOs: 64
JTAG: yes
Miscellaneous: I2S/TDM, SoundWire, PCM, PDM
Standards: WiFi 7
MIMO: 2 x MU2x2, DBS: [2.4 GHz + 5 GHz] or [2.4 GHz + 6 GHz]
Frequency: 2.4 GHz, 5 GHz, 6 GHz
Bandwidth: HT40 @ 2.4 GHz, HT240 @ 5 GHz, HT320 @ 6 GHz
Antenna Data Rate: 688 Mbps @ 2.4 GHz, 4324 Mbps @ 5 GHz, 5764 Mbps @ 6 GHz
Antenna Options: 4 x Pins
Output Power:27 dBm @ 2.4GHz, 22dBm @ 5GHz, 22dBm @ 6 GHz
No. of Clients: 512
Power Supply: 3.3V
Dimension (mm): 38.3 x 61.7
Temperature Range: 0°C to +65°C
Mounting: dual side
Package: LGA
