MQA5312-C0-1U
€47.60
Availability
Deliverable in short time
More information about samples availability can be found here: Availability

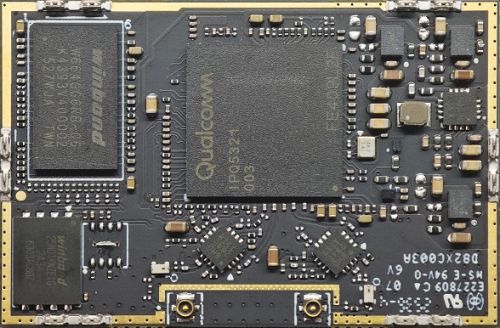

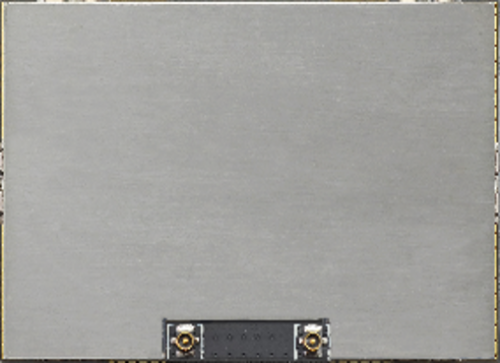

Wi-Fi 7 SOM based on IPQ-5312 from Qualcomm
Product Code:
336565
Weight: 0 g
Manufacturer: METICOMM
Weight: 0 g
Manufacturer: METICOMM
Detailed information
Module Supplier: Meticomm
Chip Supplier: Qualcomm
Chip Part Number: IPQ-5312
CPU: Quad Cortex-A53 @ 1.1 GHz
Flash: 128MB NAND
RAM: 256MB DDR4
OS: Linux OpenWRT
Ethernet: SGMII+ for 2.5G, 1G PHYs
USB: 1 x USB 3.0
PCIe: 2 x 1L PCIe 3.0
Serial Interfaces: UART, I2C, SPI
GPIOs: 44
JTAG: yes
Miscellaneous: PWM
Standards: WiFi 7
MIMO: MU 2x2
Frequency 2.4 GHz
Bandwidth : EHT40 @ 2.4 GHz
Antenna Data Rate: 688 Mbps @ 2.4 GHz
Antenna Options: 2 x K.FL2
Output Power: max 23 dBm per chain
No. of Clients: 128
Power Supply: 5V DC (±5%) power input
Dimension (mm): 30 x 45
Weight (g): TBD
Temperature Range: -40°C to +70°C
Mounting: single side
Package: 476-pin LGA
Regulatory Compliance: CE, FCC, IC, UKCA, MIC
Chip Supplier: Qualcomm
Chip Part Number: IPQ-5312
CPU: Quad Cortex-A53 @ 1.1 GHz
Flash: 128MB NAND
RAM: 256MB DDR4
OS: Linux OpenWRT
Ethernet: SGMII+ for 2.5G, 1G PHYs
USB: 1 x USB 3.0
PCIe: 2 x 1L PCIe 3.0
Serial Interfaces: UART, I2C, SPI
GPIOs: 44
JTAG: yes
Miscellaneous: PWM
Standards: WiFi 7
MIMO: MU 2x2
Frequency 2.4 GHz
Bandwidth : EHT40 @ 2.4 GHz
Antenna Data Rate: 688 Mbps @ 2.4 GHz
Antenna Options: 2 x K.FL2
Output Power: max 23 dBm per chain
No. of Clients: 128
Power Supply: 5V DC (±5%) power input
Dimension (mm): 30 x 45
Weight (g): TBD
Temperature Range: -40°C to +70°C
Mounting: single side
Package: 476-pin LGA
Regulatory Compliance: CE, FCC, IC, UKCA, MIC
