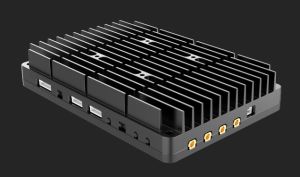

Robonode25 Development Kit

Robonode is a fully certified plug and play communications platform for drones and robotics applications based on Qualcomm Dragonwing technologies

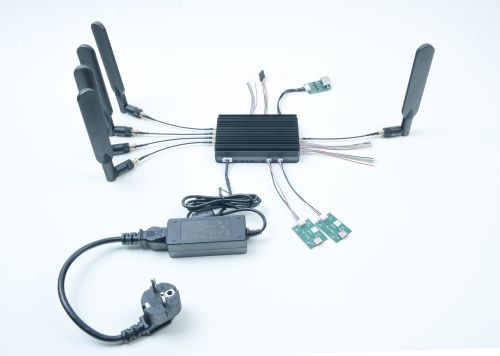

DVK is shipped with cables and accessories for out of the box testing.
Qualcomm QCS405 SoC hosting Yocto Linux and dual Wi-Fi
Qualcomm QCN9074 Wi-Fi 6 SoC (802.11a/g/n/ac/ax) : suitable for long range connectivity
Radio mode: MU-MIMO
Frequency:
2297 - 3150 MHz
4550 - 6680 MHz
5325 - 7500 MHz
Maximum output power: 28 dBm per chain (RF chain configuration 2x4)
Qualcomm WCN9380 Wi-Fi 5 SoC (802.11a/g/n/ac)- for local connectivity
Memory: 1024MB LPDDR3
Storage: 8192MB eMMC
WiFi broadcast with FEC (Forward Error Correction)
Narrow channels (5, 10, 20, 40 MHz)
Fast frequency shifting
Easy USB configuration
OpenHD support for video streaming applications
Available interfaces:
2x USB 2.0, 4x BLSP (UART, I2C or SPI),
16x GPIO, 1Gig ETH port,
1x user configurable reset button
Size: 108.5 x 73.5 x 20 mm
