WLE7000E2
€56.40
Availability
Immediately deliverable
More information about samples availability can be found here: Availability

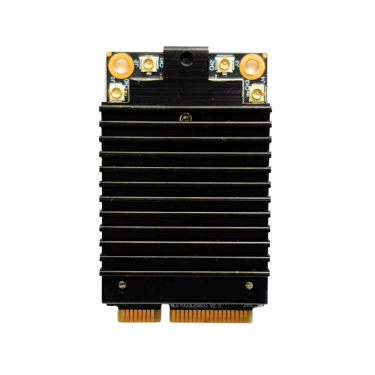

WiFi 7 PCIe radio module
Product Code:
331465
Weight: 0 g
Manufacturer: COMPEX
Weight: 0 g
Manufacturer: COMPEX
Detailed information
Module Supplier: Compex
Chip Supplier: Qualcomm
Chip Part Number: QCN-6224-0
Interface Wi-Fi: PCIe 3.0, miniPCIe
Interface Bluetooth: NA
Linux & Android / Mainline Driver: yes / from 5.4.213 upwards
Windows: NA
Bluetooth Standard: NA
WiFi Standard: WiFi 7
MIMO: MU 4x4
Frequency: 2.4GHz
Bandwidth: HT40
Antenna Data Rate: 1376Mbps
Antenna Configuration: [2G] + [2G] + [2G] + [2G]
Antenna Type: 4x U.FL
Monitor Mode: yes
Full AP / Soft AP: yes/yes
Power Supply: 3.3V
Dimension (mm): 30 x 50.8 x 13
Package: miniPCIe
Temperature Range: -20°C to 70°C
Chip Supplier: Qualcomm
Chip Part Number: QCN-6224-0
Interface Wi-Fi: PCIe 3.0, miniPCIe
Interface Bluetooth: NA
Linux & Android / Mainline Driver: yes / from 5.4.213 upwards
Windows: NA
Bluetooth Standard: NA
WiFi Standard: WiFi 7
MIMO: MU 4x4
Frequency: 2.4GHz
Bandwidth: HT40
Antenna Data Rate: 1376Mbps
Antenna Configuration: [2G] + [2G] + [2G] + [2G]
Antenna Type: 4x U.FL
Monitor Mode: yes
Full AP / Soft AP: yes/yes
Power Supply: 3.3V
Dimension (mm): 30 x 50.8 x 13
Package: miniPCIe
Temperature Range: -20°C to 70°C
