WPS530MR
€172.70
Availability
Immediately deliverable
More information about samples availability can be found here: Availability

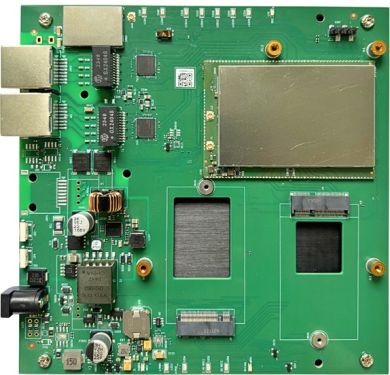

Qualcomm IPQ5322 Embedded Board
Supporting WiFi 7 and 5G Cellular Modem
1.5GHz CPU / 2x 2.5Gbps Ports / Tri-Band WiFi 7
Supporting WiFi 7 and 5G Cellular Modem
1.5GHz CPU / 2x 2.5Gbps Ports / Tri-Band WiFi 7
Product Code:
330732
Weight: 0 g
Manufacturer: COMPEX
Weight: 0 g
Manufacturer: COMPEX
Detailed information
Board Supplier: Compex
Chip Supplier: Qualcomm
Chip Part Number: IPQ-5322-0
CPU: Quad-Core Cortex-A53 @ 1.5GHz
Flash: 16GB eMMC
RAM: 1 GB DDR4
OS: OpenWRT
Ethernet: 2 x 2.5Gbps
USB: -
PCIe: PCIe3.0, 1x M.2 E Key, 1x M.2 B+M key
Serial Interfaces: UART 4 Pin Connector
GPIOs: up to 52
JTAG: -
Miscellaneous: Bluetooth Module, SIM Card Slot
Standards: WiFi 7
MIMO: 2x2 MU @ 2.4GHz
Frequency: 2.4GHz
DBS: no
Bandwidth: EHT20/EHT40
Antenna Data Rate 2.4 GHz: 688Mbps
Antenna Data Rate 5 GHz: -
Antenna Data Rate 6 GHz: -
Antenna Options: 2x U.FL
Clients: 128
Output Power: 22 dBm @ 2.4 GHz
Power Supply: 1x DC Jack Connector: 12V
Dimension (mm): 142 x 142 x 21
Weight (g): TBD
Temperature Range: -20°C to +70°C
Reference Design: Qualcomm AP.MI01.2
Chip Supplier: Qualcomm
Chip Part Number: IPQ-5322-0
CPU: Quad-Core Cortex-A53 @ 1.5GHz
Flash: 16GB eMMC
RAM: 1 GB DDR4
OS: OpenWRT
Ethernet: 2 x 2.5Gbps
USB: -
PCIe: PCIe3.0, 1x M.2 E Key, 1x M.2 B+M key
Serial Interfaces: UART 4 Pin Connector
GPIOs: up to 52
JTAG: -
Miscellaneous: Bluetooth Module, SIM Card Slot
Standards: WiFi 7
MIMO: 2x2 MU @ 2.4GHz
Frequency: 2.4GHz
DBS: no
Bandwidth: EHT20/EHT40
Antenna Data Rate 2.4 GHz: 688Mbps
Antenna Data Rate 5 GHz: -
Antenna Data Rate 6 GHz: -
Antenna Options: 2x U.FL
Clients: 128
Output Power: 22 dBm @ 2.4 GHz
Power Supply: 1x DC Jack Connector: 12V
Dimension (mm): 142 x 142 x 21
Weight (g): TBD
Temperature Range: -20°C to +70°C
Reference Design: Qualcomm AP.MI01.2
