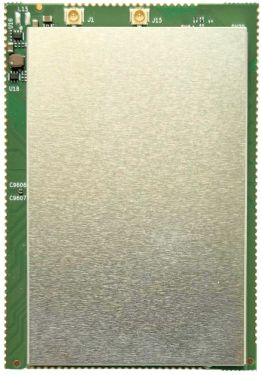

WSB530

Module Supplier: Compex
Chip Supplier: Qualcomm
Chip Part Number: IPQ-5322-0
CPU: Quad Cortex-A53 @ 1.5 GHz
Flash: 16 GB eMMC
RAM: 1 GB DDR4 (up to 3 GB)
OS: Linux OpenWRT
Ethernet: 2x multi-GbE Ethernet SerDes supporting external 10G/5G/2.5G/1G PHYs
USB: 1 x USB 3.0 (or 1x USB 2.0 + PCIe 3.0 option)
PCIe: 2 x PCIe 3.0
Serial Interfaces: 3x BLSP ports for UART, I2C, and SPI interface
GPIOs: 33
JTAG: yes
Miscellaneous: 4 x PWM
Standards: WiFi 7
MIMO: MU 2x2
Frequency: 2.4 GHz
Bandwidth: HT40 @ 2.4 GHz
Antenna Data Rate: 688 Mbps @ 2.4 GHz
Antenna Options: 2x U.FL connectors (IPEX1)
Output Power: max 22dBm per chain
Power Supply: 3.3V, 12V, 5V
Dimension (mm): 65 x 45
Temperature Range: -20°C to +70°C
Mounting: dual side
Package: LGA
