250BXC4R7MEFC8x11.5

free sample

Availability: available

Our special prices apply to sample shop orders and are without VAT.

105°C THT Long-Life E-Cap BXC-series for high ripple currents
177134
0.1 g
  • Product Description
  • Features

Details

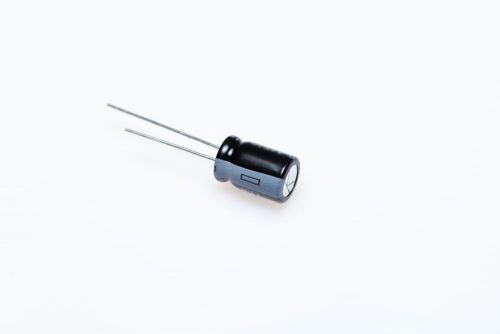

105°C THT DC-Link Aluminum Electrolytic Capacitor 250BXC4R7MEFC8x11.5 with long life time and high ripple current capability

Technical Product Information

Additional Information

Series: BXC
Rated Voltage V: 250 V
Capacitance µF: 4,7 µF
Rated Ripplecurrent@100kHz/max. Category Temperatur mA rms: 160 mA rms
Guaranteed Lifetime h: 8000 h
Maximum Category Temperature °C: 105 °C
Minimum Category Temperature °C: -25 °C
Pitch mm: 3,5 mm
Pin Type: THT
Diameter mm: 8 mm
Height mm: 11,5 mm
