35TLV220M8x10.5

Free Sample

Availability
Deliverable in short time
More information about samples availability can be found here: Availability
105°C SMD Long-Life E-Cap TLV-series for high ripple currents
Product Code: 208035
Weight: 0.87 g
Manufacturer: RUBYCON

Detailed information

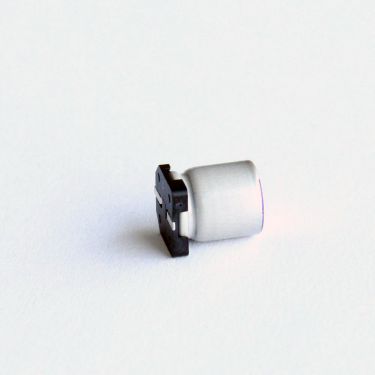

105°C SMD Aluminum Electrolytic Capacitor 35TLV220M8x10.5 with high ripple current capability and long life time

Your technical contact person

For general questions

CODICO GmbH +43 1 86305-0 E-Mail
More Information
Rated Voltage 35V
Capacitance 220µF
Capacitance Tolerance +/-20 %
Rated Ripple Current @100kHz 600mA rms
Rated Ripple Current @120Hz 0mA rms
Impedance/ESR 0,16Ω
Maximum Category Temperature 105°C
Minimale Category Temperature -55°C
Guaranteed Lifetime 5000h
Pin Type SMD
Diameter 8mm
Height 10,5mm
Series TLV
Voltage Type DC
Rated Voltage 35Vdc
