EEHZU1E561P
Free Sample
Out of stock
Deliverable in short time
More information about samples availability can be found here: Availability

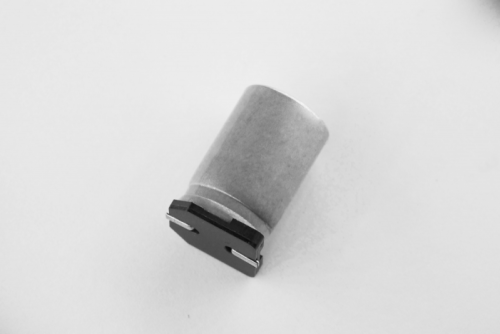

135°C SMD Hybrid E-Cap ZU-series
Product Code:
300962
Weight: 2.2 g
Manufacturer: PANASONIC
Weight: 2.2 g
Manufacturer: PANASONIC
Detailed information
135°C SMD Aluminum-Polymer-Hybrid Electrolytic Capacitor EEHZU1E561P with 4,000h guaranteed life time, extremely low ESR and extremely high ripple current capability - AEC-Q200 certified
Rated ripple current @125°C: 5,800mA
Rated ripple current @125°C: 5,800mA
Your technical contact person
For general questions
Manufacturer / Brand
Manufacturer: PANASONIC
Technical Product Information
| Capacitance | 560µF |
|---|---|
| Capacitance Tolerance | +/-20 % |
| Rated Ripple Current @100kHz | 4000mA rms |
| Impedance/ESR | 0,008Ω |
| Maximum Category Temperature | 135°C |
| Minimale Category Temperature | -55°C |
| Guaranteed Lifetime | 4000h |
| Pin Type | SMD |
| Diameter | 10mm |
| Height | 16,5mm |
| Series | ZU |
| Voltage Type | DC |
| Rated Voltage | 25Vdc |
