EEHZL1E221XP
Free Sample
Availability
Deliverable in short time
More information about samples availability can be found here: Availability
Ultra miniaturized 135°C SMD Hybrid E-Cap ZL-series
Product Code:
323795
Weight: 0.6 g
Manufacturer: PANASONIC
Weight: 0.6 g
Manufacturer: PANASONIC
Detailed information

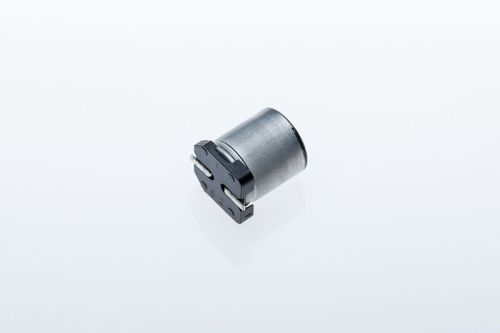

Ultra miniaturized 135°C SMD Aluminum-Polymer-Hybrid Electrolytic Capacitor EEHZL1E221XP with 4.000h guaranteed life time, particularly low ESR and particularly high ripple current capability - AEC-Q200 certified.
Ripple current capability at 125°C: 2,000mA rms
Ripple current capability at 125°C: 2,000mA rms
Your technical contact person
For general questions
Manufacturer / Brand
Manufacturer: PANASONIC
Technical Product Information
| Capacitance | 220µF |
|---|---|
| Capacitance Tolerance | +/-20 % |
| Rated Ripple Current @100kHz | 1000mA rms |
| Impedance/ESR | 0,024Ω |
| Maximum Category Temperature | 135°C |
| Minimale Category Temperature | -55°C |
| Guaranteed Lifetime | 4000h |
| Pin Type | SMD |
| Diameter | 6,3mm |
| Height | 7,7mm |
| Series | ZL |
| Voltage Type | DC |
| Rated Voltage | 25Vdc |
